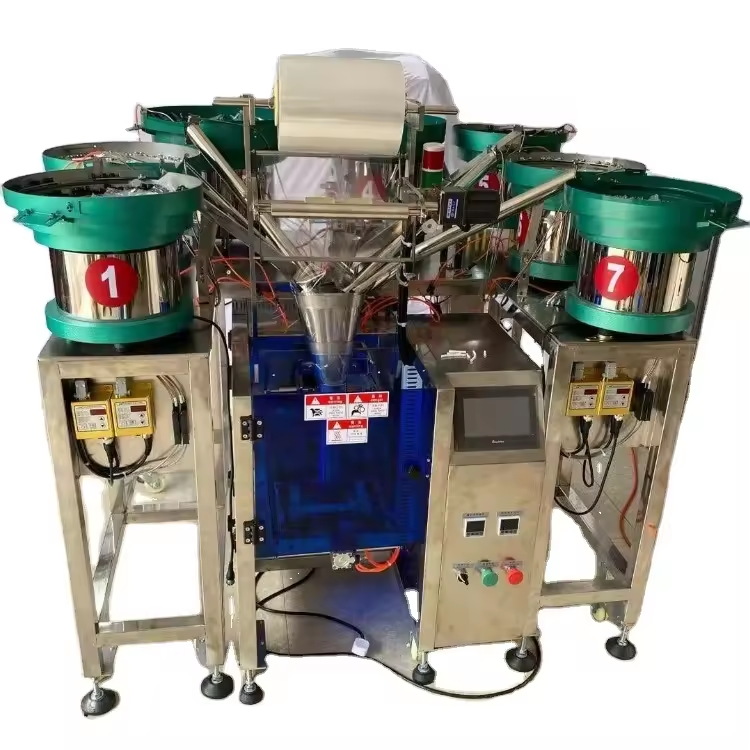

High accuracy by counting automatic vffs hardware screw nails packing machine

Category: Multi-function vertival pouch packaging machine
Views: 274
4 plates
nails, fasteners
fiber counting
fast speed

  • PRODUCT DETAIL

Technical characteristics:

1. Adopt internationally renowned brand PLC, which has good performance and durability;

2. This machine makes bags, fills, seals, codes, and cuts the bag, and counting is done at one time;

3. The stepping motor pulls the film, the resistance is small, the bag is beautiful and beautiful; the belt is not easy to wear;

4. Each vibrating plate will not resonate with each other, increasing the noise on site;

5. Reduce the interference of external factors on the optical fiber and improve the accuracy of the optical fiber;

6. When the vibration plate is added to run, the material is discharged more stably when moving, which improves the accuracy of the optical fiber;





Specifications:

Bag shape

Back seal

Incision form

straight incision

Roll film width

Max.320mm (customizable)

Film thickness

5-13C (recommended 6-8C)

Bag length

80-170mm (touch screen adjustment)

Bag making width

60-150mm (replace the bag maker)

Bag material

OPP/CPP/NILO composite, etc.

Edge width

10mm (fine adjustment)

Power Specifications

220V, 50/60HZ

Bag making method

Elephant Trunk

Pull film method

Stepper motor control
double wheels to pull film

speed

30 bags/minute
(according to the actual material condition)

Packing capacity

Max.W150*L170mm

power

3.5 kw (according to the number of disks and user needs)

Outer packaging

Wooden box

equipment weight

300KG

Equipment size

Length 1200*Width1000*Height 4040 mm (customized)

Measurement method

Fiber metering and trail
