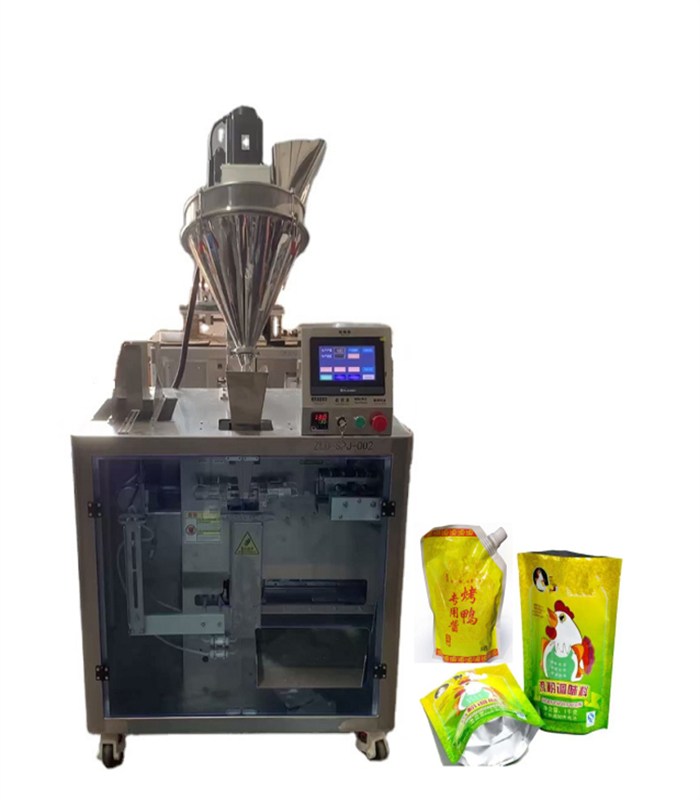

Automatic hardware seeds juice spice powder pre-made bag stand up pouch zipper lock doypack filling sealing packing machine

Category: Products
Views: 249
zipper lock
stand-up pouch
automatic
pre-made bag

  • PRODUCT DETAIL

Why we design this kind premade bag packing machine?



There are many cusomers want a machine that can automatically fill and seal the premade bag with small scale low cost .  Machines in the market are quite big and price is quite high. We are always helping with our customer with best suitable machine with reasonable and afforable price,so a small scale size automatic filling sealing packing machine for premade bag packing machine is new made out.



Working princleple:



Machine will auto drop bag, auto filling(by changing fillling head , it can fill for powder, liquid or granules). filling weight can be adjusted, sealing.  It works smoothly and high efficicency.

stand up pouch packing.jpg



Specifications:



Bag making size

Width: 45-110mm/50-200mm. Length:Max 300 mm(or customizied)

Measuring range

1-500g( or customized)

Packing Speed

10-30bags per min( depending on the material )

Total Power

220V/50HZ/1.4KW

Weight

300KG

Overall Dimension

660*950*1650 mm

 premade bag filling9





for liquid premade bag filling1Machine details:

premade bag filling5premade bag filling2premade bag filling6premade bag filling3Machine features:

It is suitable for the measurement and packaging of granules, liquids, powders, semi-fluids,  and other items in the food and industrial industries (replace the feeding device according to the different properties of the materials).



1. The operation is intuitive and convenient, using 7-inch touch screen PLC control, man-machine interface operating system. It is easy to adjust, and the replacement of varieties can be completed within ten minutes, and it is suitable for different types of packaging bags.

2 The equipment meets the hygienic standards of food and medical machinery, and the parts in contact with the equipment are made of 304 stainless steel or other materials that meet the food hygiene requirements to ensure food hygiene and safety. The screw metering device is made of 304 stainless steel, which meets the requirements of food grade. The transparent viewing window can observe the material status in real time, and the metering error is small. Match the corresponding screw according to the material to achieve high precision and high efffciency.

3 High degree of automation, unmanned in the packaging process, automatic alarm when there is a fault, the equipment is equipped with a transparent plexiglass protection door. Oil free vacuum pump is used to avoid polluting the production environment.

4 Packaging bags: pre-made bags, back sealing bags, four-side sealing bags, hot edge bags, sawtooth bags, etc.

Machine packing samples for reference:

stand up packing samplestand up pouch
