High precision combination weighing scales snacks hardware multi-function packing machine

Product Item: TLV 520
Category: Multi-function vertival pouch packaging machine
Views: 282
10 heads
20 heads
8 heads
520 film width

  • PRODUCT DETAIL

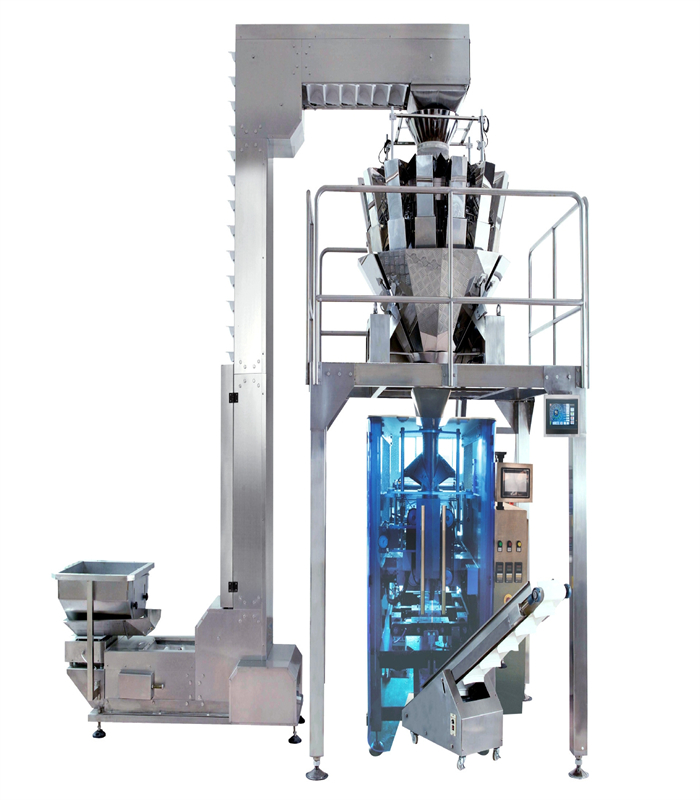

It is made up of a  Automatic packing Machine , a Z Feeder ,a Work-table  and heads weight scale


machine developed by our company is a high-speed vertical stainless steel packing machine, the machine gathers bag-making, filling, sealing, cutting, printing, counting etc. multi functions in a body, the roll film wide is 100 ~ 520 mm.

Compare with similar machine, the machine adopts a unique membrane--supplying system, the film working very stable, no partial.

Adopts the Japanese Panasonic servo motor driving tension membrane.

●Touch type color screen operation, PLC used the Mitsubishi, the man-machine dialogue is very intuitive.

●Compact and durable, ensure the machine trouble-free working. And the machine has 2 kinds of bag length control system :color standard and setting length.



The main properties and structure characteristics


*  Applicable products: ideal machine for seed industry, applicable seeds, rice, popped food etc. particles

*  The perfect combination of high speed and high precision, select the best combination, through the computer from the weight of the multi calculation combination instantaneously.

* High precision digital weighing transducer makes that accurate measurement can be realized instantly.

* Chinese/English, etc many language LCD screen operating system

* All parts adopt stainless steel, the clean, health. Full-sealed design prevents the accumulation of material design and easy cleaning.

* It can prevent breakage and block material according to materials characteristics to adjust slightly

open or shut speed of hopper door .

* Strong data of automatic statistical functions, record the total number of each batch of the production, percent of pass and single bag error etc.

* Strong compatibility, installed directly in the packing machine, compact structure .

* Save a lot of raw materials and labor costs, investment returns fast.



Model

FHCB-G/ 10

Max weighing

3000g

Single bag average error

0.1-1.5g

Weighing precision range

0.2-0.5g

max weighing speed

55bags/min

Hopper capacity

1700ml

Hopper form

A single hopper

Driving way

Stepping motor

Product preset number

99 types

Body size (mm)

950(L)X970(W)X1280(H)

Operating interface

5.7 Inches color LCD monitor



Model

560

bag type

Back sealing

Packaging speed

Max 55bags/min

Bag width

20-250mm

Bag length

50-350mm

Packaging film width

Max 560mm

Packaging volume

2000ml

Voltage

380V 3kw

Weight

350kg
