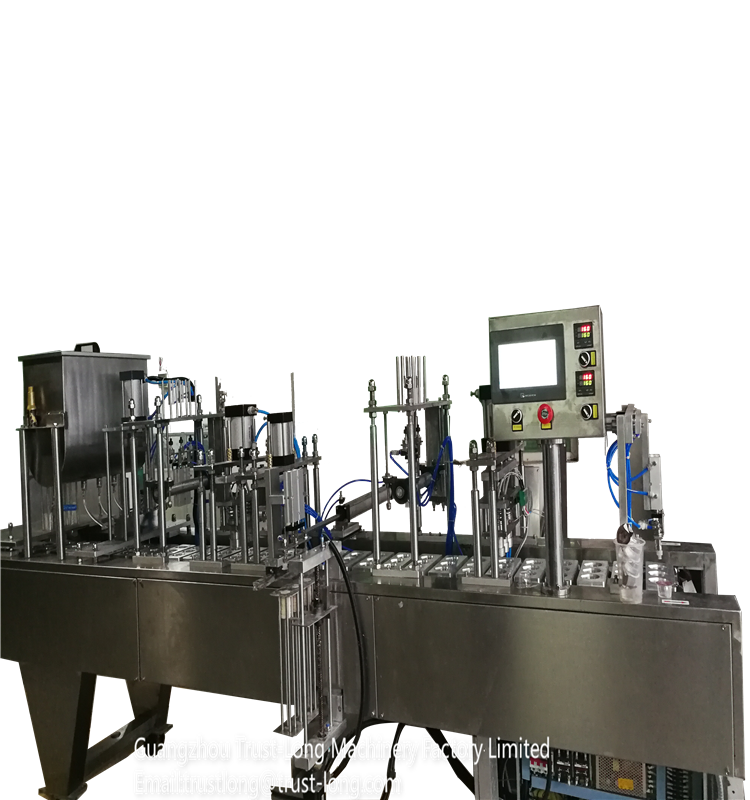

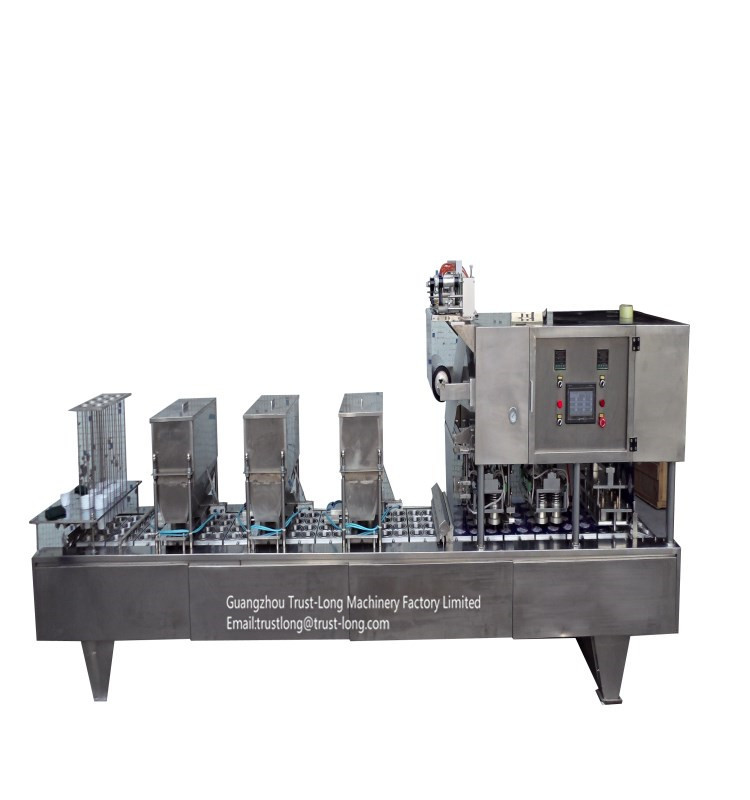

Automatic cup water filling and sealing machine

Description :

·machine will automatic cup loading, uv sterilizing, filling , uv sterilizing,date printing,cup sealing, discharging to conveyor

· It is mainly used in the industries like: Yogurt bean curd、milk、fruit juice、mineral water、jam paste,jelly and coffee powder etc..

Functional description

·Machine is pneumatic, every single working process can be controlled separately

·The PLC control system regulates the function of the machine as s whole or through its individual components.

·Each filling and sealing machine is designed in full compliance with the product, its cup and sealing style. Depending on the output required.

·Have touching screen that’s easy operate.

·Template drive with high precision indexing box.

·All product contact parts are stainless steel. The machine is manufactured using stainless steel, anodized aluminum and plastic, all of which conform to standards for food grade materials.

·The programming language and scripting commands in English

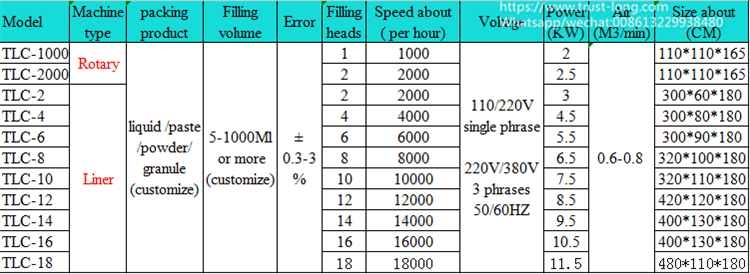

TECHNICAL SPECIFICATION

Main parts brand:

PLC：Mitsubishi

Cylinder: AIRTAC

Motor: HEZI(SHANGHAI)

Control panel: WEINVIEW

Air-break switch and thermometer: CHAT

approach switch：Schneider：YANGMING(TAIWAN)
