China high quality automatic rotary nespresso cup filling machine coffee to United States

Product Item: TLC-1000
Category: for coffee powder filling
Views: 1657
functions:kcup filling and sealing machine
rotary cup filling machine
filling machine coffee
nespresso pods filling machine

  • PRODUCT DETAIL

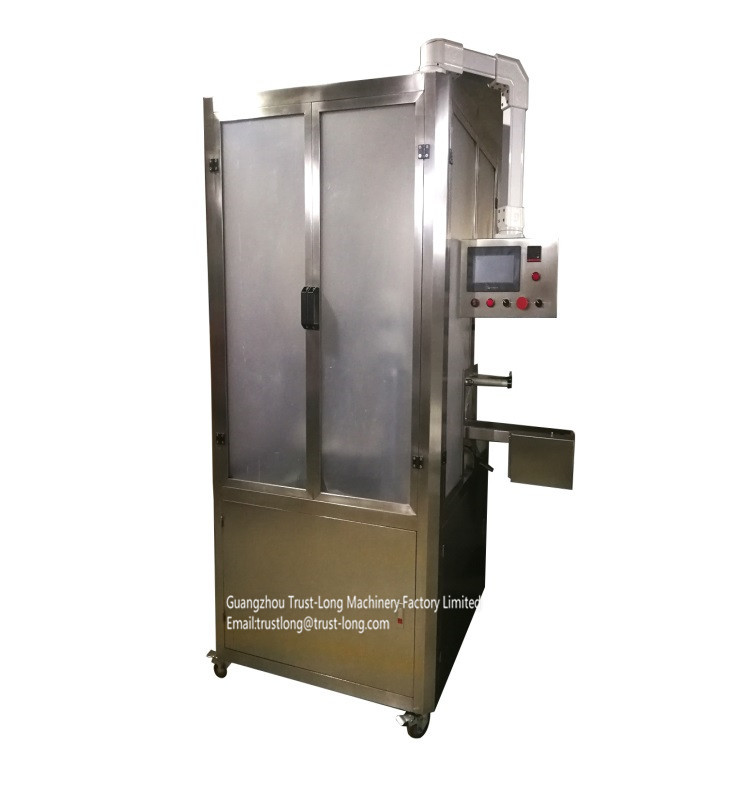

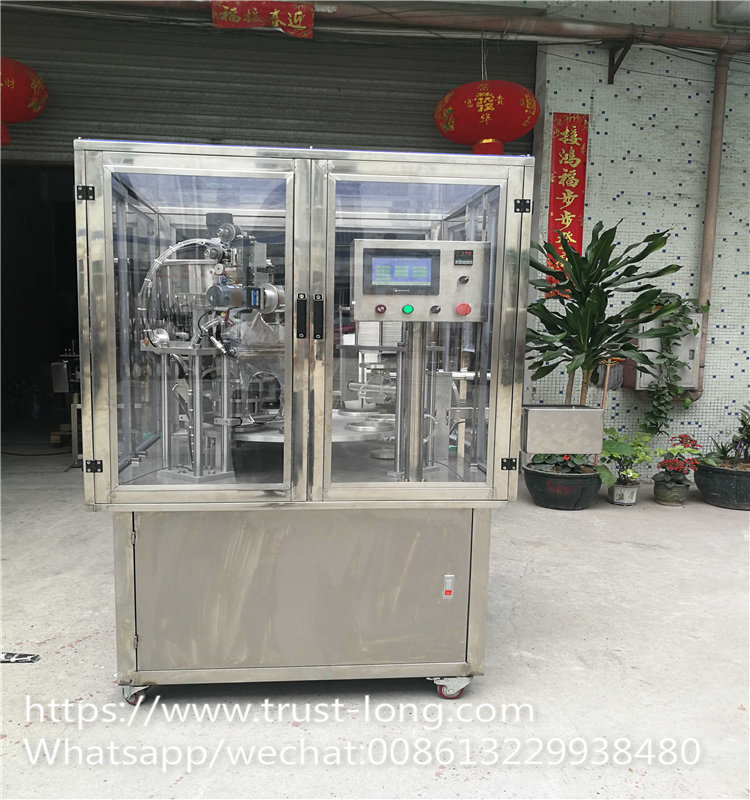

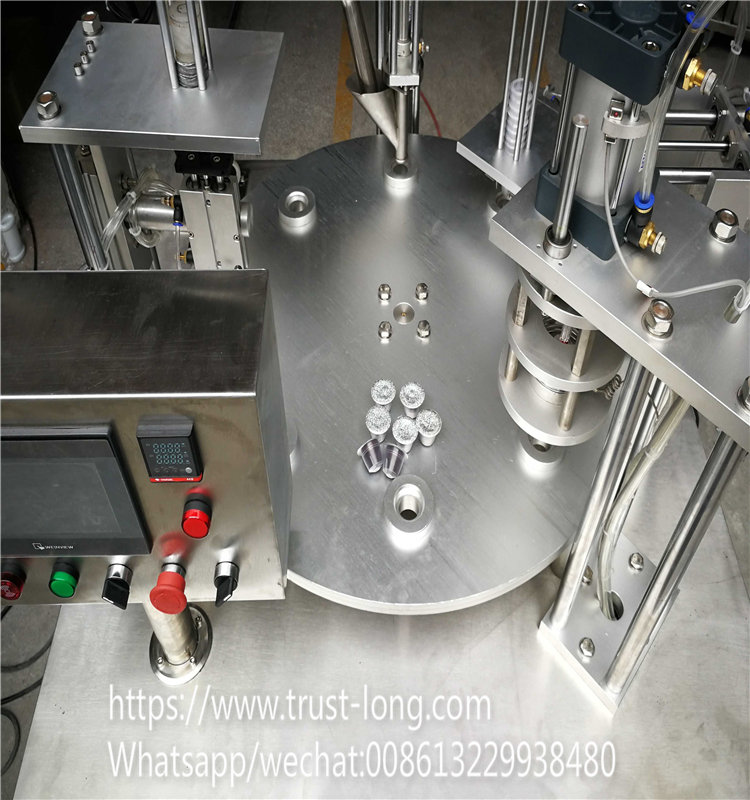

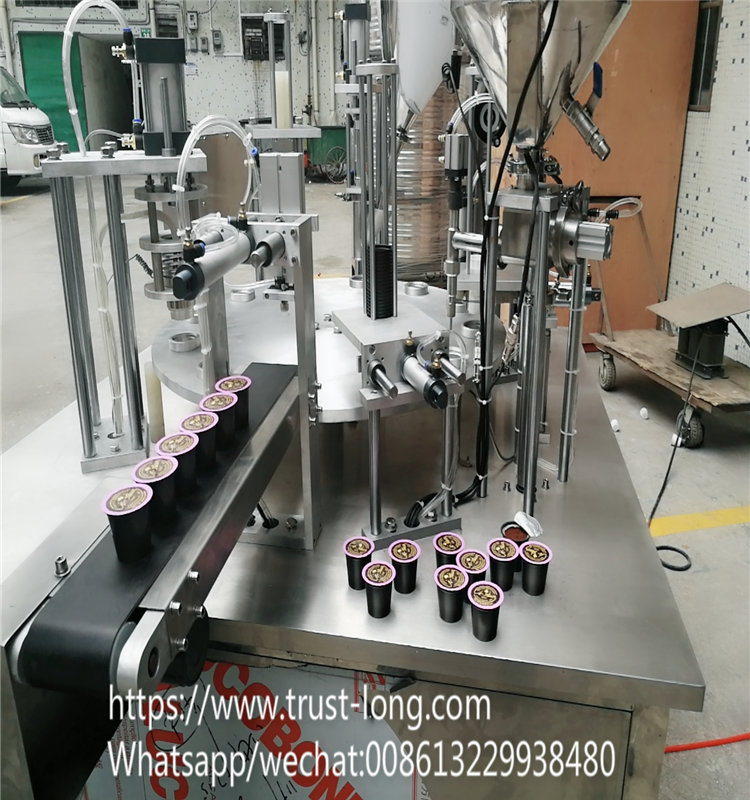

 Automatic rotary cup filling machine coffee


Working process

Can automatically complete the plastic (paper) automatic cup dropping, filling nitrogen, filling powder, press powder, absorb film, sealing, lifting cup.

Equipments:

·Each filling and sealing machine is designed in full compliance with the product, its cup and sealing style. Depending on the output required.

·The PLC control system regulates the function of the machine as s whole or through its individual components.

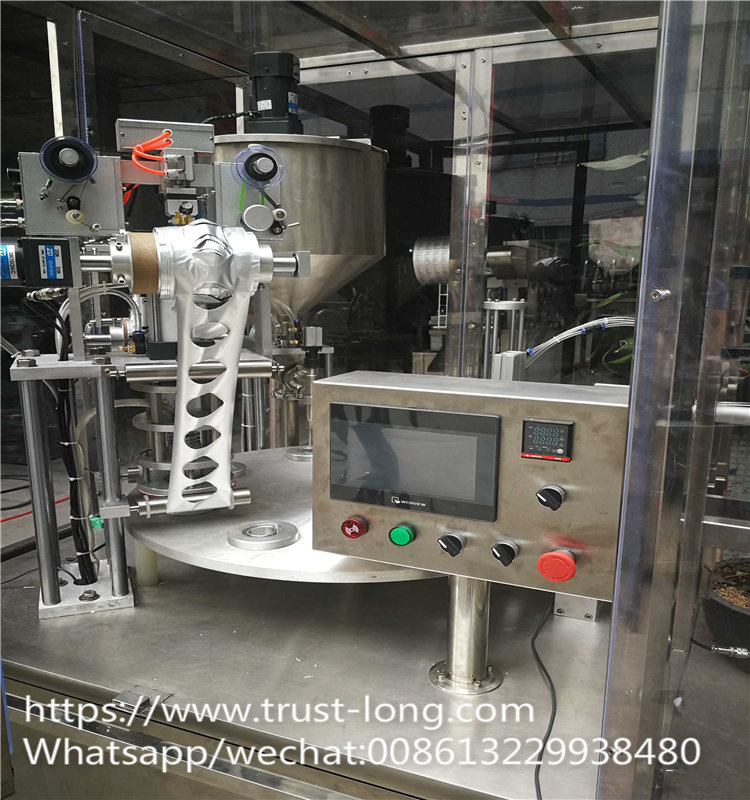

·Have touching screen that’s easy operate and nice.

·Template drive with high precision indexing box will be more precisely.

·All product contact parts are stainless steel. All of which conform to standards for food grade materials.

·The programming language and scripting commands in English

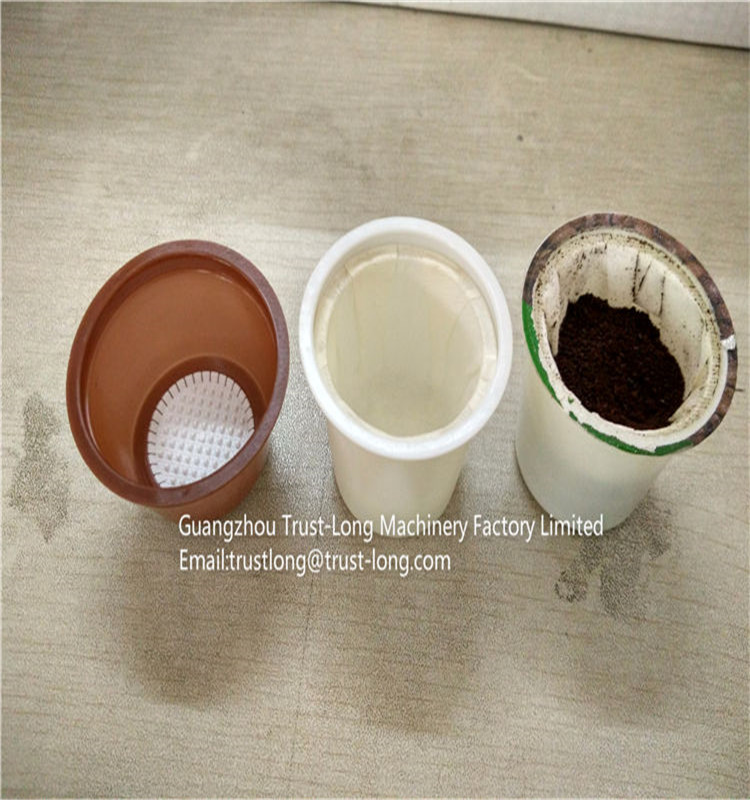

Working processing of K- cup filling sealing machine(CONTACT FOOD MATERIAL AND MACHINE FRAME IS SS 304,MEET FOOD GRADE)



















Working processing





















Working processing

Drop cups

1) Pneumatic cylinder control

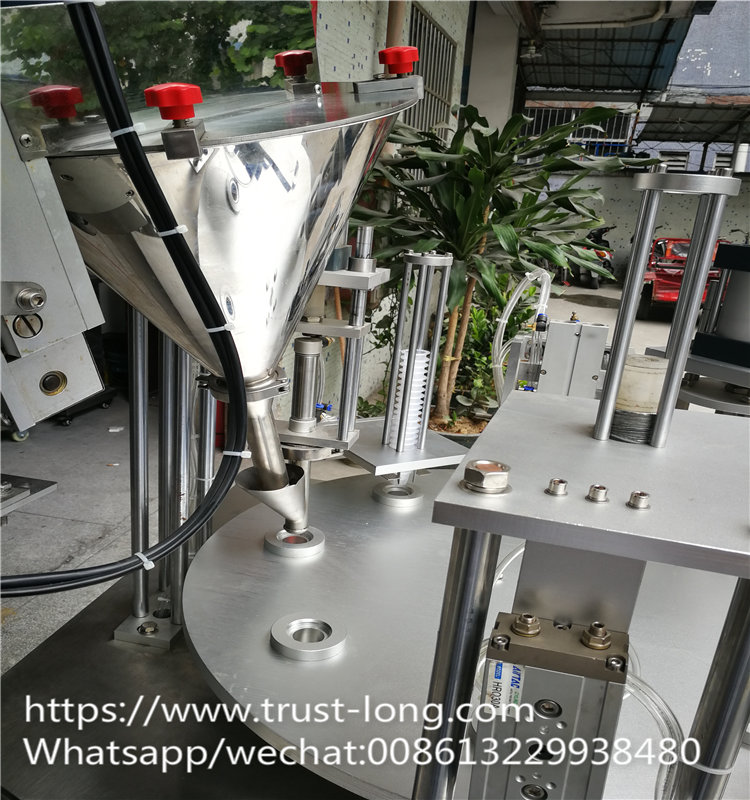

Filling coffee powder

1) Screw filling type

2) Accuracy 0.5~3+-%

3) Filling volume can be adjusted on the touch screen,

4) All parts contact coffee made of SS 304, meet food grade

Pressing  coffee

1)  Compacting coffee type

2)  Make powder wont on edge of cup in case sealing not nice

hopper mixing

1) Mixing for better evenness of coffee powder



2) Motor control separately

Put foil

1) Pneumatic Cylinder control

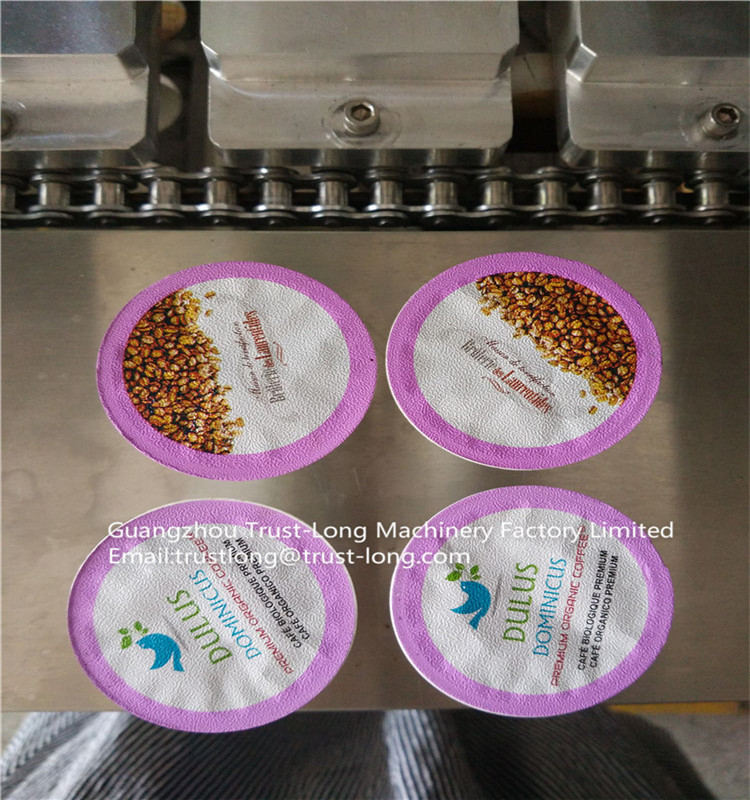

Sealing

1) Sealing temperature can be adjusted from about 0-400.seal firmly

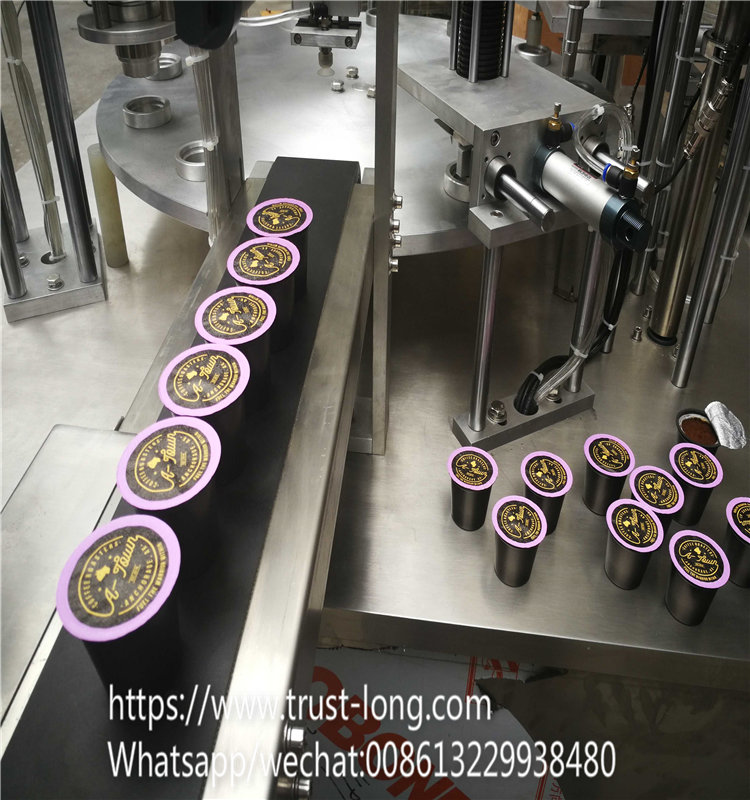

Push out finished cups

1) Pneumatic Cylinder control

2) Lift up finished cups on the conveyor can help to transfer coding



 TECHNICAL SPECIFICATIONS]

Capacity

about 800 cup/hour

Filling range

0ml50ml(adjust)

Heat power

1 KW

Air consumption

0.6 m3/min

Voltage

220V   phrases ,50Hz

Weight

300kg

Overall dimension

1250mmX1250mmX1730mm
