Food vacuum sealer sealing machine China Guangzhou

Product Item: TLV-400
Category: Vacuum sealing machine
Views: 85
functions:vauum sealer
food vacuum sealing machine
vacuum sealing machine
guangzhou vacuum machine

  • PRODUCT DETAIL

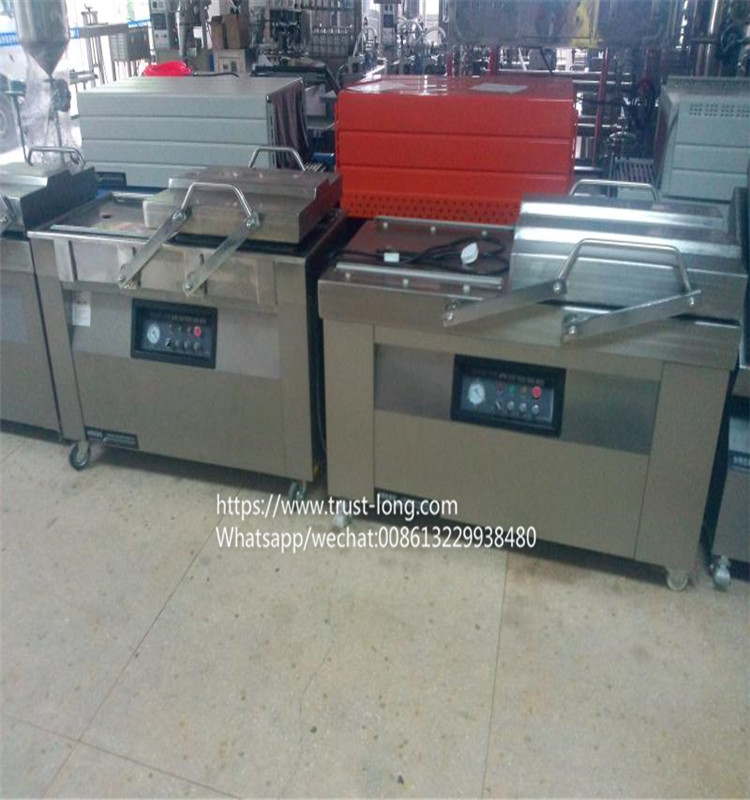

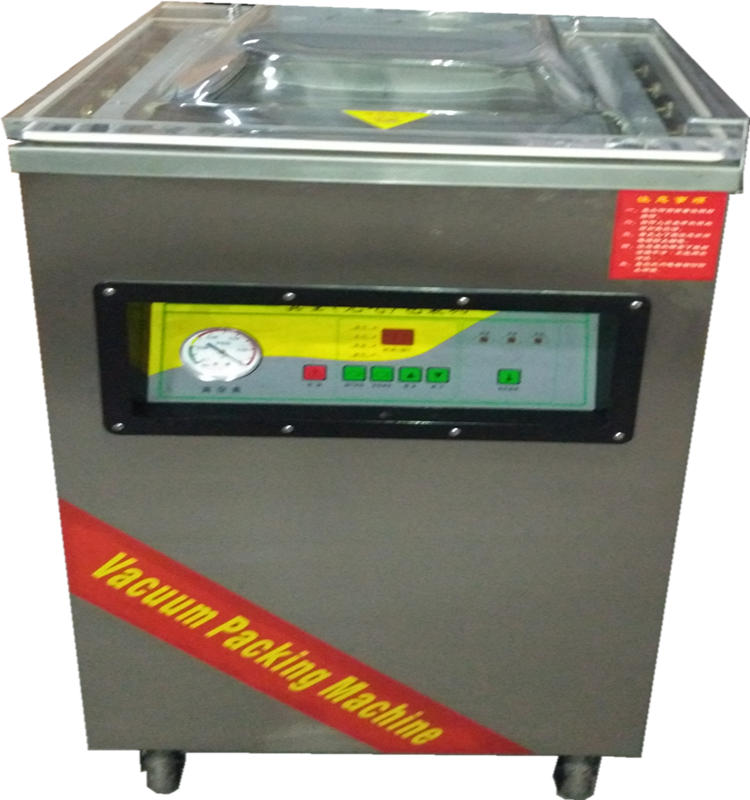

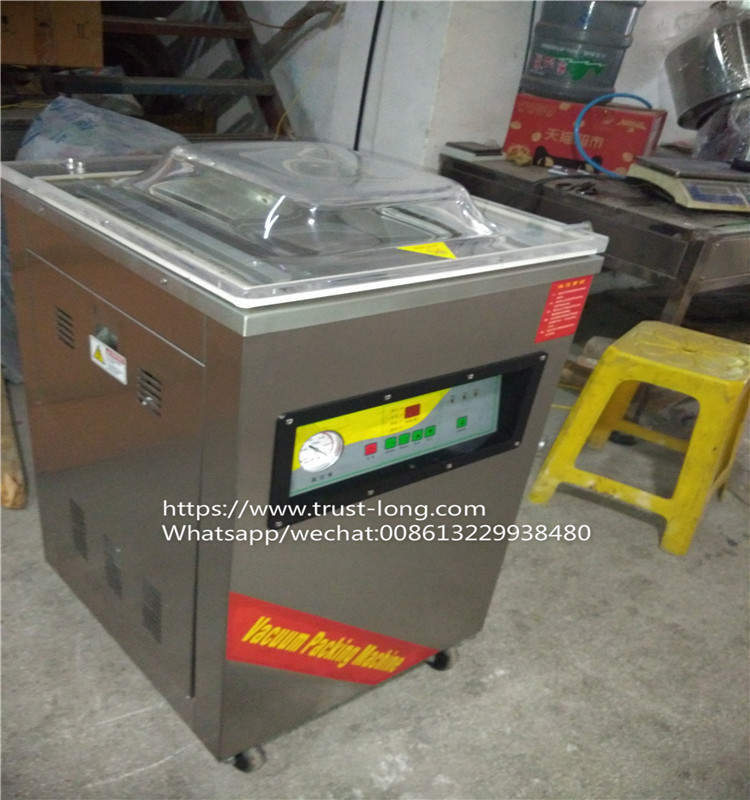

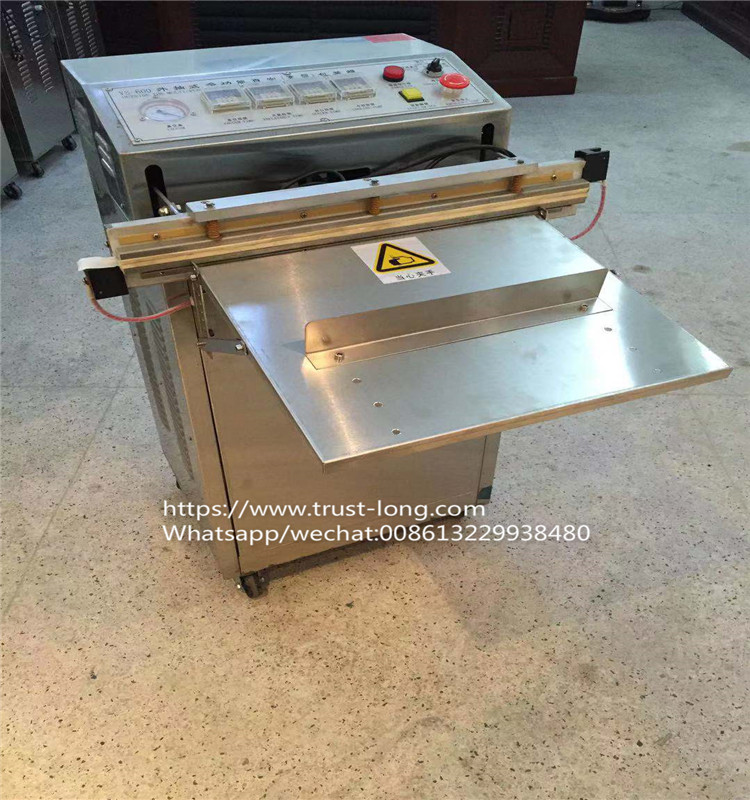

Food vacuum sealer sealing machine China Guangzhou

Feature:

DZ series vacuum packaging machine, just need to press the vacuum cover complete after vacuum filled with inert gases, sealing, lettering, cooling and exhaust in terms of the process. The vacuum packaging or vacuum gas items can prevent oxidation , mildew and bug eat by moth, damp, extended product storage period.

Working principle

Vacuum packaging is pumped into the low vacuum packaging bag, the automatic sealing immediately, due to high vacuum bag, very little residual air and inhibit the propagation of bacteria and other microorganisms to prevent the items oxidation, mildew and corruption, while some Soft goods, vacuum packaging, can be reduced packaging size, easy to transport and storage

Model

DZD-400/S

DZD-500/S

DZD-600/S

Material

SS304/2B Stainless steel

Sealing length

400mm

500mm

600mm

Double Spacing

360mm

460mm

550mm

Put aside content height

80mm

Package capability

2-3 times/minute

Voltage

AC380220V)

Power

1.2KW

2KW

Limit vacuum

200PA

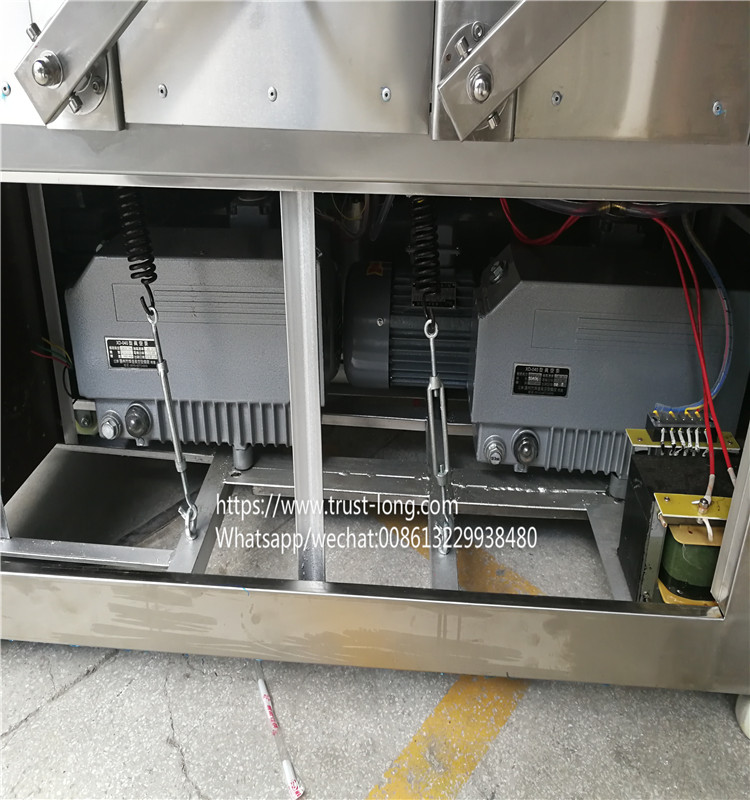

Vacuum pump

Rotary Vane XD-020

Electrical application

SCF-P delay control

Weight

80KG

100KG

150KG



Model

DZ-400/2SC

DZ-500/2SC

DZ-600/2SC

Voltage

AC 380V/50Hz   220V/60Hz

Vacuum Pump Power

750W

1500W

Sealing Power

600W

750W

1000w

Ultimate Vacuum Pressure

1Kpa

NO. of Sealing Bars for Each Chamber

2

Chamber Dimension

590×450×110mm

615×515×60mm

710×550×95mm

Sealing Length

400mm

500mm

600mm

Sealing Width

10mm

Vacuum Pump Rate

20m3/min

40m3/min

Bag

Vacuum bag

Overall Dimension

990×800×900mm

1260×780×960mm

1450×850×930mm

Net Weight

120kg

170kg

210kg
