guangzhou small borehole water treatment system for Africa

Product Item: TLW-1000
Category: Water treatment system machine
Views: 1042
function:water treatment plant small
Africa water treatment
borehole water treatment
well water treatment

  • PRODUCT DETAIL

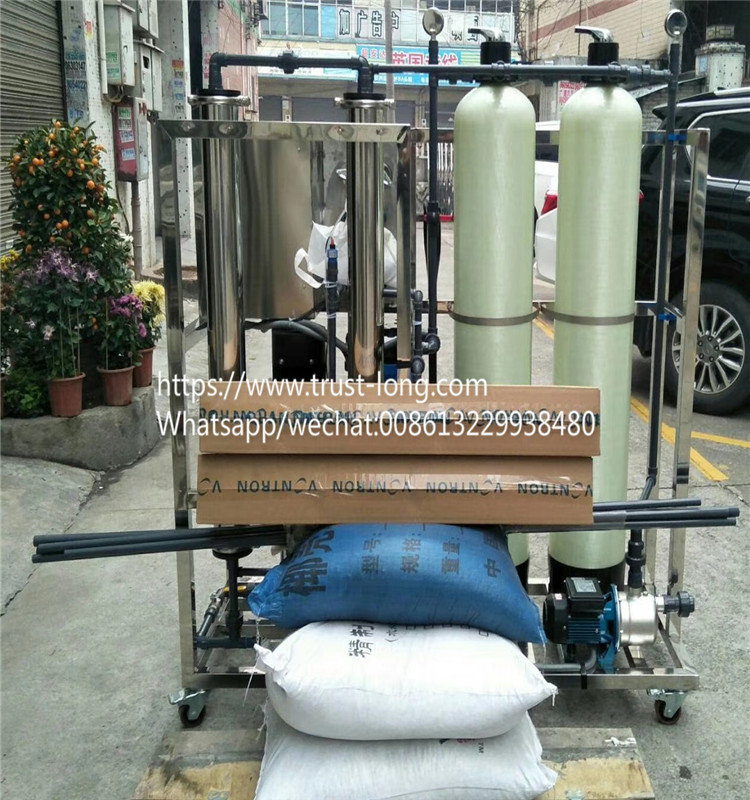

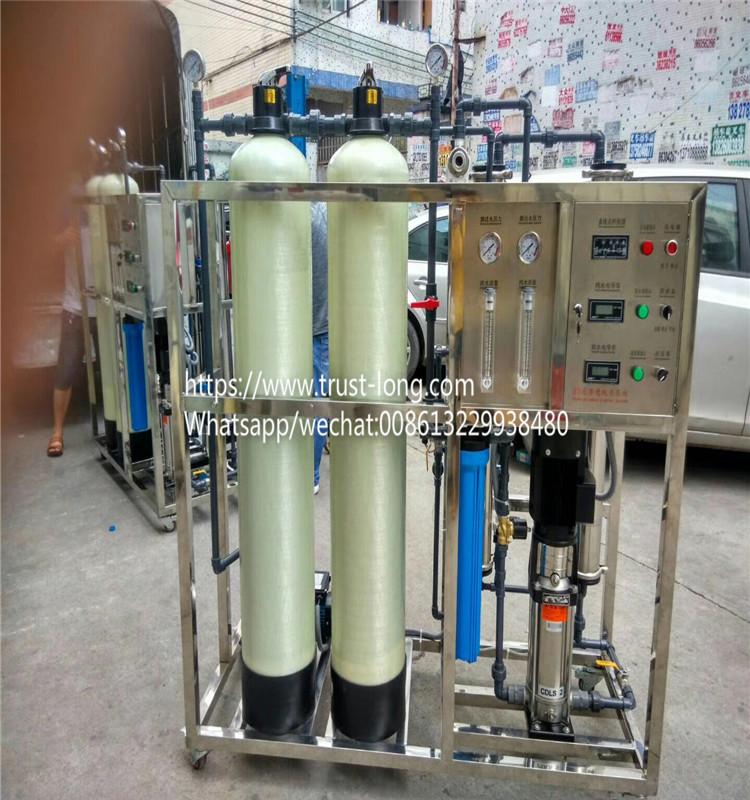

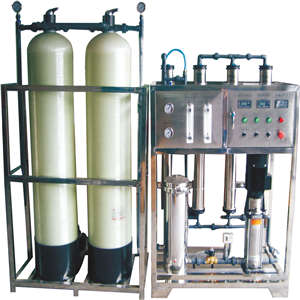

China guangzhou borehole water treatment system for Africa


1, the introduction of pure water equipment system

1). The equipment related to pure water equipment is automatically operated by liquid level interlocking, with automatic functions (automatic water production, automatic flushing, raw water shortage/water tank full water automatic shutdown, high and low pressure alarm, etc.).

2). The design of the actuator adopts standardized, generalized and systematic components, which is convenient for disassembly, replacement and cleaning of parts.

3). The system structure is compact and the floor space is small, which saves space.

4). The system has low energy consumption and effectively saves energy.

5). Long life of consumables and low cost of water production.

6). The system runs reliably, the water supply pipeline is closed, and the effluent water quality is stable.

7). Use materials that are non-polluting to water quality.


2, the scope of application of pure water equipment

Direct drinking water, industrial and mining enterprises, production water, electroplating industry water, battery water, chemical industry process water

4, can provide installation services;

5. one year warranty, lifetime maintenance

Model

TLW-500/1000/1500/2000L/3000L/5000L

Water sauce

Total dissolved solids content:TDS200ppmwater pressure:1.0-5.0kg/cm2,working temperature:25℃

power

AC220V/50HZ,AC380V/50HZ

Capacity(L)

150L/H

250L/H

500L/H

1000L/H

1500L/H

2000L/H

powerKW

0.1-0.5

1.1-1.5

1.5-2.5

2.5-3.5

2.5-3.5

2.5-3.5

waterqualityμs/cm

Conductivity15<μs/cm

Machine sizemm

1200*580*1200

1500*550*1500

1800*800*1800

Floor area

8about

10-12about

12-15about

weightkg)

300KG

600KG

1000KG

Water application

Direct drinking water, industrial and mining enterprises, production water, electroplating industry water, battery water, chemical enterprise process water, medical pure water

Water tank

100L

250L

500L

1000L

1500L

2000L
