China made nespresso capsule pods coffee filling and sealing machine to USA

Product Item: TLC-4
Category: for coffee powder filling
Views: 1481
Function:nespresso capsule filling machine
filling machine coffee
nespresso capsule filling and sealing machine
coffee pods filling machine

  • PRODUCT DETAIL

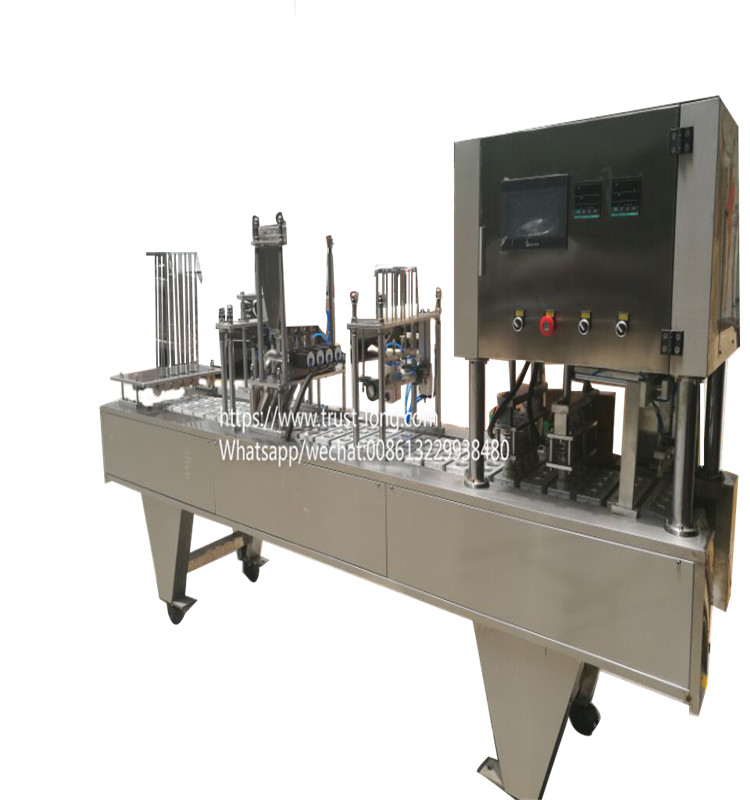

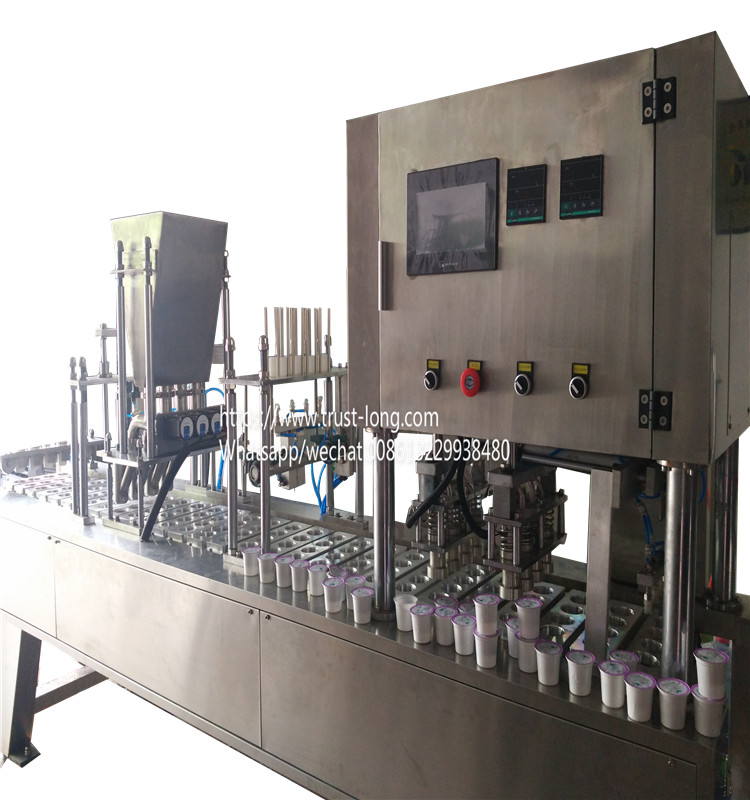

China made nespresso capsule pods coffee filling and sealing machine to USA



Working process

Can automatically complete the plastic (paper) automatic cup dropping, filling nitrogen, filling powder, press powder, absorb film, sealing, lifting cup.

Equipments:

·Each filling and sealing machine is designed in full compliance with the product, its cup and sealing style. Depending on the output required.

·The PLC control system regulates the function of the machine as s whole or through its individual components.

·Have touching screen that’s easy operate and nice.

·Template drive with high precision indexing box will be more precisely.

·All product contact parts are stainless steel. All of which conform to standards for food grade materials.

·The programming language and scripting commands in English


Working processing of K- cup filling sealing machine(CONTACT FOOD MATERIAL AND MACHINE FRAME IS SS 304,MEET FOOD GRADE)

Working processing

Working processing

Drop cups

1) Pneumatic cylinder control

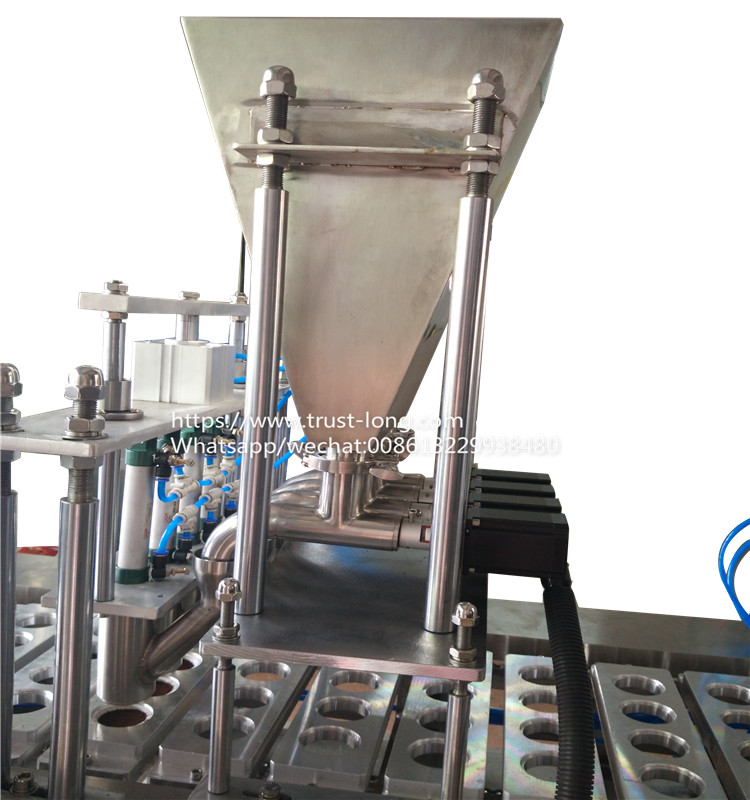

Filling coffee powder

1) Screw filling type

2) Accuracy 0.5~3+-%

3) Filling volume can be adjusted on the touch screen,

4) All parts contact coffee made of SS 304, meet food grade

Pressing  coffee

1) Compacting coffee type

2) Make powder wont on edge of cup in case sealing not nice

hopper mixing

1) Mixing for better evenness of coffee powder

2) Motor control separately

Put foil

1) Pneumatic Cylinder control

Sealing

1) Sealing temperature can be adjusted from about 0-400.seal firmly

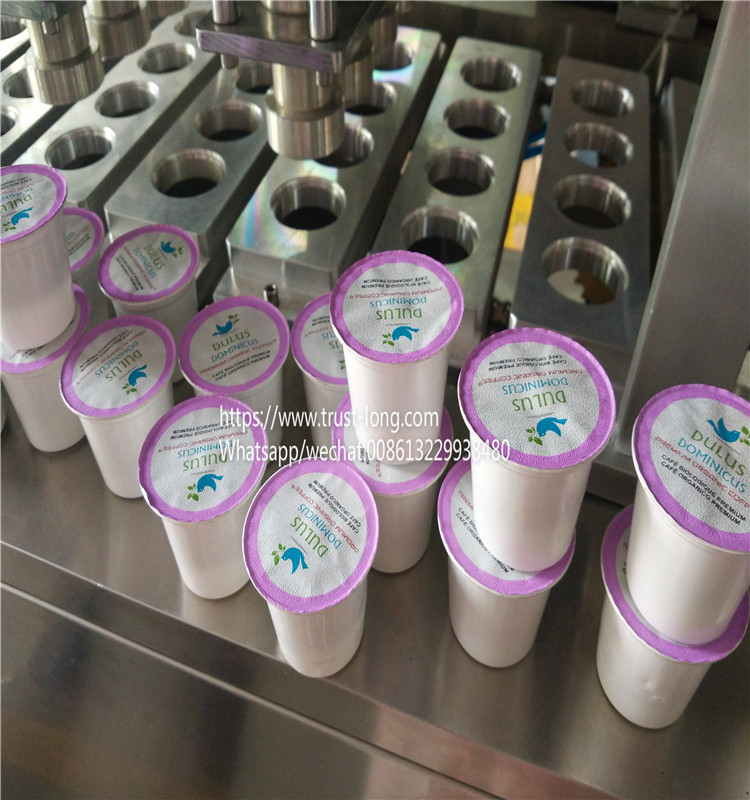

Push out finished cups

1) Pneumatic Cylinder control

2) Lift up finished cups on the conveyor can help to transfer coding

Model

TLC-4

Voltage

380V,3 phrases

Power

4KW

Capacity

2500cups/h

Filling Range

0-150ml

Filling type

Measuring cup

Temperature

0-300

Seal Material

PE  PP PET

Air Source

0.4m3/min  8bar

Weight

750Kg

Overall Dimension

3500×700×1650mm

Hopper volume

30L
